Camera Basics

bit.ly/mmcl-camera

slido.com (code: 3996528)

Maxims

  1. Photography: Triangle of "exposure" (one of these things is not like the other)!
  2. Everything seems backward
  3. More light = more blur
    • What do people do to see more clearly (without moving and without using tools)?

Part 1: Form & Function

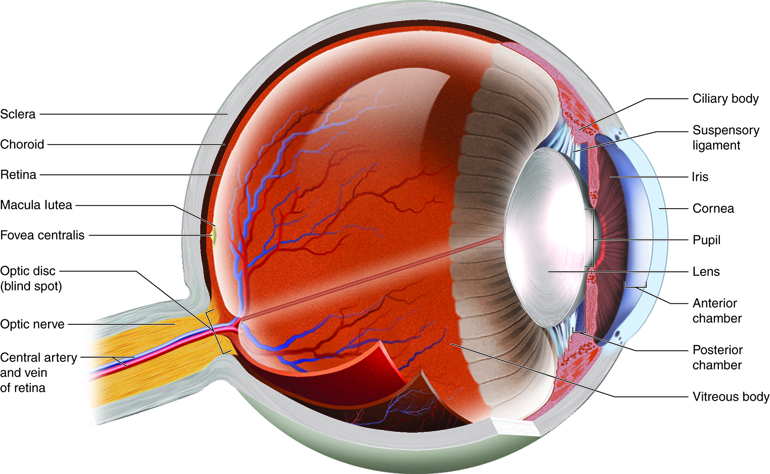

  1. Understanding anatomy of human eye
    1. Eyelid
    2. Pupil & Iris
    3. Lens
    4. Retina

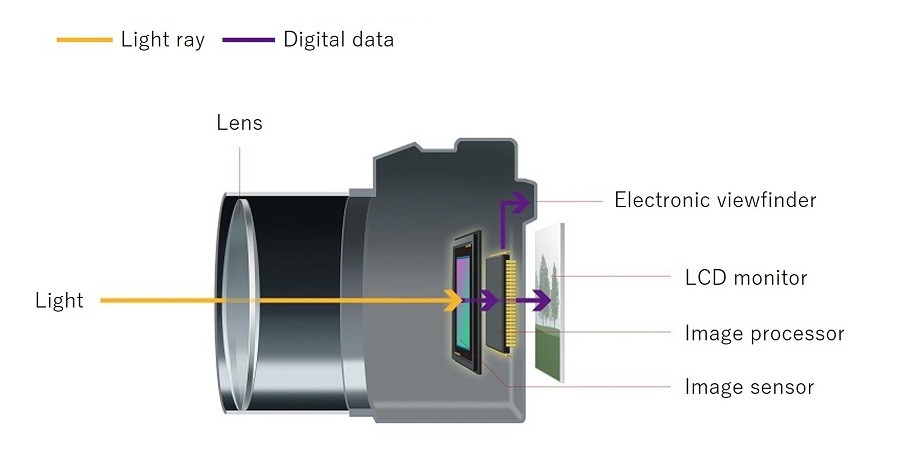

  2. Understanding anatomy of (mirrorless) camera
    1. Lens

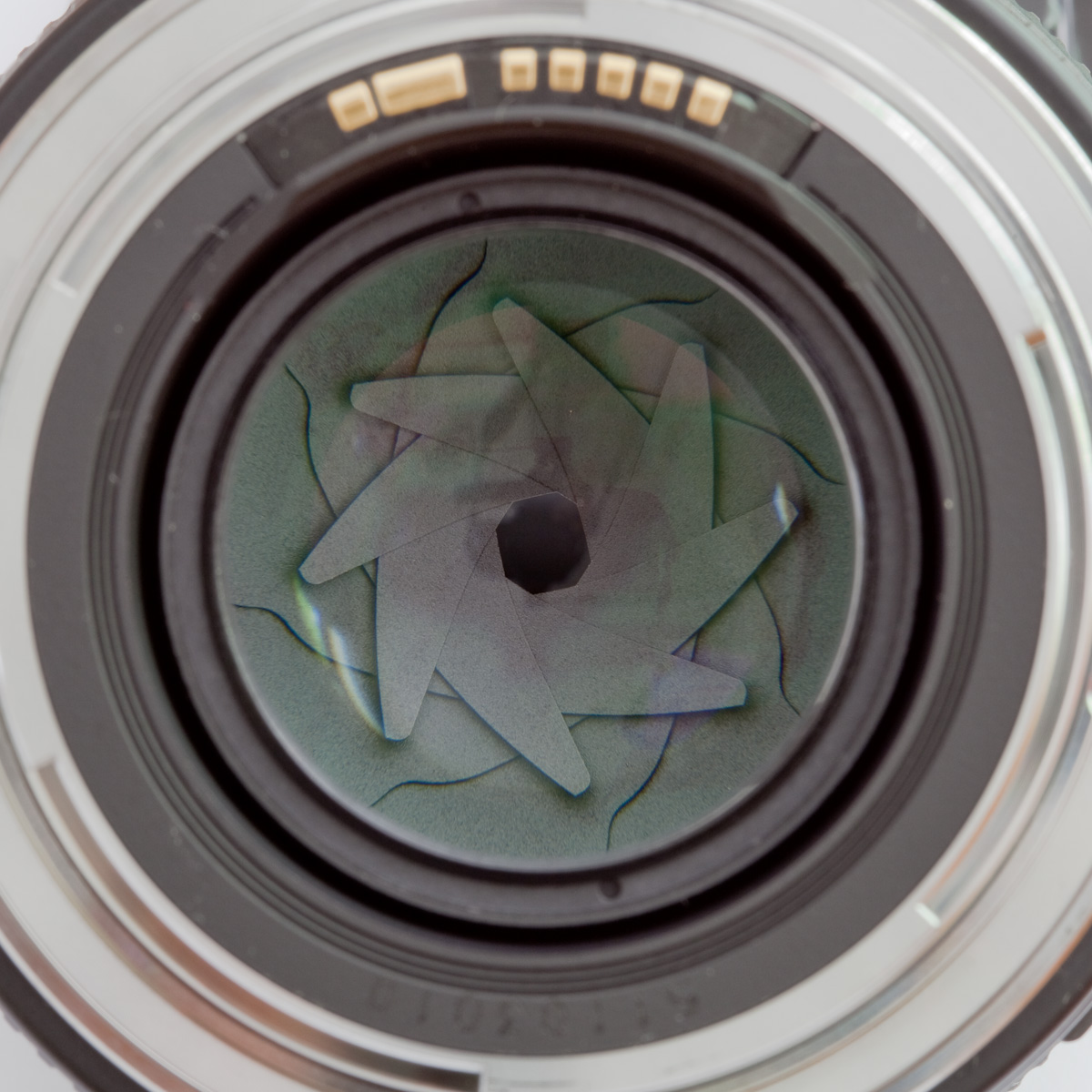

    2. Aperture & Diaphragm
    3. Shutter
    4. Sensor
  3. Analogy: Fans entering concert arena
  4. Quiz: Form & Function

Part 2: Three Pillars of Image Recording

  1. Explaining shutter activity
    1. Biology comparison?
    2. Exposure & motion blur
    3. Shutter speed vs shutter/exposure time
    4. Quiz: Shutter Activity
  2. Explaining aperture activity
    1. Biology comparison?
    2. Exposure & background blur
    3. Field (depth of field): Area in focus
    4. Focal length (Canon Georgia)
    5. F-number AKA F-stop
      • Represented as focal length / aperture diameter (or N = f / d ... so, d = f / N)
    6. F-number or f-stop scale:
      f / 1,
      f / 1.4,
      f / 2,
      f / 2.8,
      ...
    7. Quiz: Aperture Activity & Focal Length
  3. Explaining ISO activity
    1. Biology comparison?
    2. Exposure* & noise
  4. Quiz: Triangle of Image Recording
  5. Reflection: Triangle of Exposure*

Part 3: Camera Setup

  1. Enabling histogram
    • X-axis: Left-edge (extreme black/darkness) vs right-edge (extreme white/lightness)
    • Y-axis: Top-edge (prevalence) vs bottom-edge (absence)
  2. Exploring other exposure tools
    • 'Zebra' aka 'blinky' highlighting
    • False colour: Green vs pink
  3. Choosing file format(s)
    • JPEG (and/or HEIF) vs RAW vs both
  4. Setting white-balance (WB example 1, WB example 2, WB example 3)
    • Colour temperature (Kelvin) vs colour affect (emotion)
    • Scale (1000K to 10,000K): Orange-white-blue
    • Auto vs preset vs manual

Part 4: Camera Modes

  1. Exploring semi-automatic modes
    1. Aperture priority (A or Av): User controls aperture (and ISO, which can be set to auto)
    2. Shutter priority (S or Tv): User controls shutter (and ISO, which can be set to auto)
    3. Manual (M) with auto ISO
  2. Exploring exposure compensation
  3. Exploring auto-focus modes
    1. Importance of technique & settings
    2. Method for finding focus-points: (Feature)-tracking vs spot/zone
    3. Operation: Stationary (One Shot) vs Moving (Servo or AI Servo aka Autofocus-Continuous aka AFC)
  4. Exploring shutter/drive modes
    1. Single-shot vs timed/delayed vs continuous
    2. Mechanical shutter vs electronic shutter vs electronic front-curtain shutter (Photography Life)

Part 5: Technical Guidelines

  1. Comparing photography and videography
  2. Consider general guidelines for shutter settings (to minimize motion blur)
    1. Still photography:
      1 / [2 * value of focal length] sec
    2. Motion photography:
      Stationary – 1 / 100 sec
      Walking –  1 / 200 sec
      Jogging – 1 / 400 sec
      Running – 1 / 800 sec
      Flying – 1 / 2000 sec
    3. Video (realistic amount of motion blur):
      1 / [2 * value of frame rate] sec (aka 180-Degree Shutter Rule)
  3. Remembering guidelines for aperture settings
    1. “f/8 and be there," or
    2. f/[2* number of subjects]

Part 6: Creative Guidelines

  1. Considering basic guidelines
    • Rule of Thirds
    • Fill the frame
    • Contrasting lights/shadows, colours
    • Something in the foreground
    • (Outdoors) Sun behind the camera
    • Three different angles
  2. Breaking said guidelines
  3. (Video) Considering intentional movement of camera
    • Panning (horizontal pivot), tilting (vertical pivot)
    • Pushing in/out
    • Tracking
